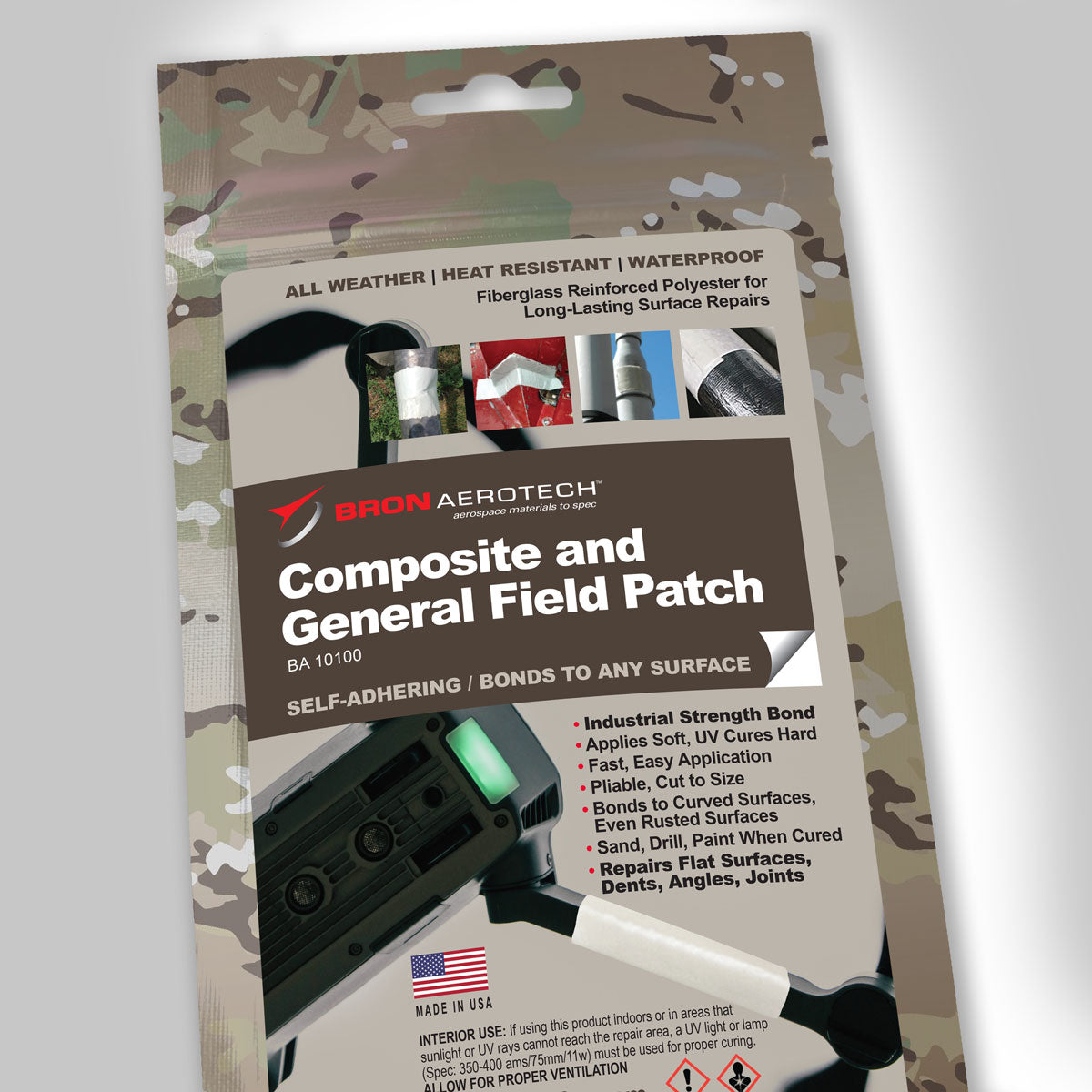

BA 10100 Composite and General Field Patch
BA 10100 Composite & General Field Patch is a unique in-field composite and general adhesive patch material designed to reduce downtime for aircraft, weapons, marine and other vehicles and applications. BA 10100 is great for drone (AUS, UGV, UUV, etc.) onsite repairs. It quickly cures and hardens in direct UV light or the sun’s natural UV rays. BA 10100 is ideal for general maintenance applications and bonds well to fiberglass, plastic, metal, rubber, pipes and hoses.
Meets Specifications: FAR 25.853
Applications:
- Attaching
- Composite Repairing
- Impact Resisting
- Outdoor Bonding
- Reinforcing, Repairing
- Sealing
- UV Mitigating
- UV Resisting
- Very High Bonding
- Water
- Solvent and Oil Resisting
- Weather Sealing
- Weatherproofing
- Wrapping
Properties:
|
Construction/ Typical Properties |
Value |
Test Method |
|
Flash Point: |
840° F |
|
|
Material Thickness: |
1.7 – 1.9mm |
|
|
Curing Mechanism: |
Ultra Violet (UV) natural or UV lamp |
|
|
Flexural Strength: |
>18,000 PSI |
ASTM D790-03 |
|
Flexural Modulus: |
879,060 PSI |
ASTM D2344 |
|
Tensile Strength: |
7970 PSI (BS 2782 – 1994) |
|
|
Elongation at Break: |
>3% (BS 2782 – 1994) |
JIS Z0237 |
|
CoEff. Of Thermal Expansion: |
2.9 10-5 Degree C (BS 2782 – 1995) |
|
|
Impact Resistance: |
>60 Kj/sqm (BS 2782 – 1996) |
|
|
Hardness: |
>60 Barcol (BS 2782 – 1997) |
|
|
Compression Strength: |
29,000 PSI (BS 2782 – 1998) |
|
|
Adhesion: |
>500 PSI (BS 2782 – 1992) |
|
|
Water Vapor Permeability: |
0.28g/m2/24h/mmHg |
ASTM E96 |
|
Fire Rating: |
Class A |
ASTM E84 |
|
Temperature Rating: |
-30° to +365° F |
|
|
Dielectric Strength: |
9KV/mm |
IEC 243 |
|
Arc Resistance: |
>180 seconds |
ASTM D495 |
|
Tracking Resistance: |
>600 volts |
IEC 112 15,432 lbs/sq. ft. |
|
Insulation Resistance: |
1013 ohms |
IEC 93 |
