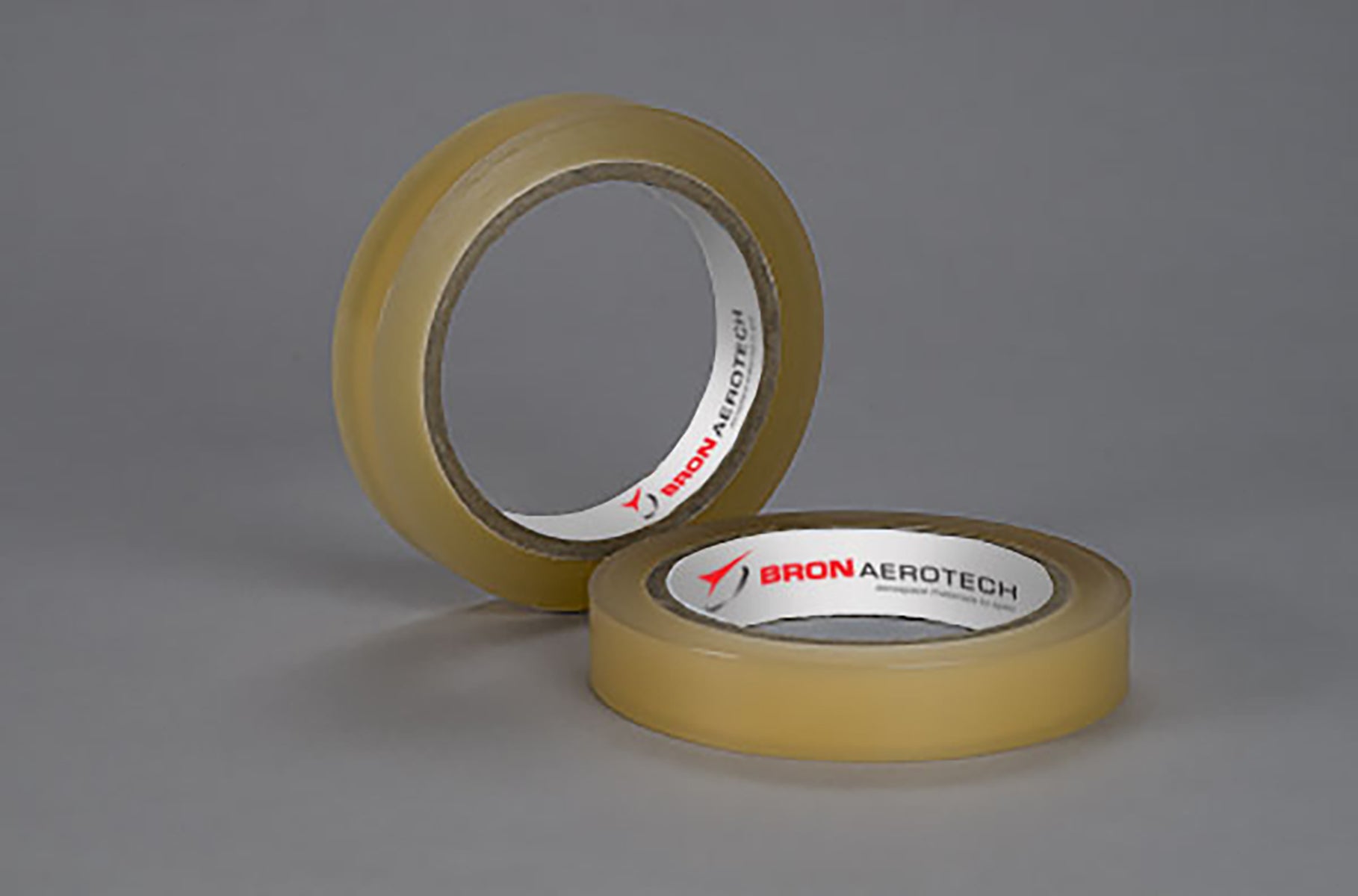

BA 306 PTFE FEP Tape
BA 306 is a pressure sensitive tape made of FEP (Teflon®) film that is coated with a high temperature silicone adhesive. The FEP film is optically clear and offers excellent electrical properties and chemical resistance. BA 306 is used in chemical masking and high temperature applications.
Applications:
- Chemical Masking
- High Temperature Masking
- Surface Protection
Properties:
|
Construction/ Typical Properties |
Value |
Test Method |
|
Backing Material |
FEP Film |
|
|
Backing Thickness |
0.002in / 0.005cm |
|
|
Adhesive System |
Silicone |
|
|
Adhesive Thickness |
0.0015in / 0.004cm |
|
|
Adhesion |
30 oz./in. / 334.83 g/cm |
ASTM-D 1000 |
|
Tensile Strength |
6 lb./in. / 1.071 kg/cm |
ASTM-D 3759 |
|
Elongation |
300% |
ASTM-D 3759 |
|
Dielectric Strength |
8,500 volts |
ASTM-D 149 |
|
Max. Operating Temp. |
400°F |
204.44°C |
