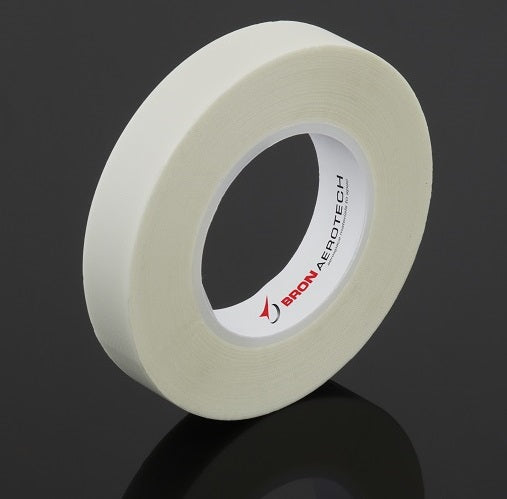

BA 31T Glass Cloth Electrical Tape
BA 31T is a glass cloth electrical tape, with a 7-mil woven insulating glass cloth tape with an acrylic pressure-sensitive adhesive. BA 31T is used to electrically insulate and provide mechanical protection at temperatures 302°F. BA 31T provides insulation and solvent-resistant protection for use as a coil cover, anchor, banding and core layer cross over insulation. It is edge tear resistant, conformable and printable.
Applications:
- Abrasion Resisting
- Cable Wrapping
- Electrical Insulating
- Printing
- Surface Protection
- Wrapping
Properties:
Construction/ Typical Properties |
Value |
Test Method |
Color |
White |
|
Adhesive |
Acrylic |
ASTM-D-1000 |
Total Thickness |
7.0 mils |
ASTM-D-1000 |
Elongation |
5% |
ASTM-D-1000 |
Adhesion to Steel |
30 oz/in |
ASTM-D-1000 |
Dielectric Breakdown |
3000 volts |
ASTM-D-1000 |
Breaking Strength |
150 lbs/in |
ASTM-D-1000 |
