BA 5772 Skived PTFE Film Tape

Product details
  • Type Single-Sided PTFE Tape
  • Application Groups
    • Composite Process Applications
  • Color(s) Grey
  • Backing / Carrier Type
    • PTFE Film
  • Adhesive Type
    • Silicone
  • Total Thickness 3.5 mil
  • Backing Thickness 2 mil
  • Adhesion to Steel 30 oz/in
  • Elongation at Break (Min. Avg) 325%
  • Temperature Range -100°F - +500°F
Datasheet Request

Request a datasheet with additional technical information through the contact form below

Worldwide Shipping
Custom Converting Capabilities
Certs + Documentation Available
AS 9100 + ISO 9001:2015 Certified through NSF-ISR
Description

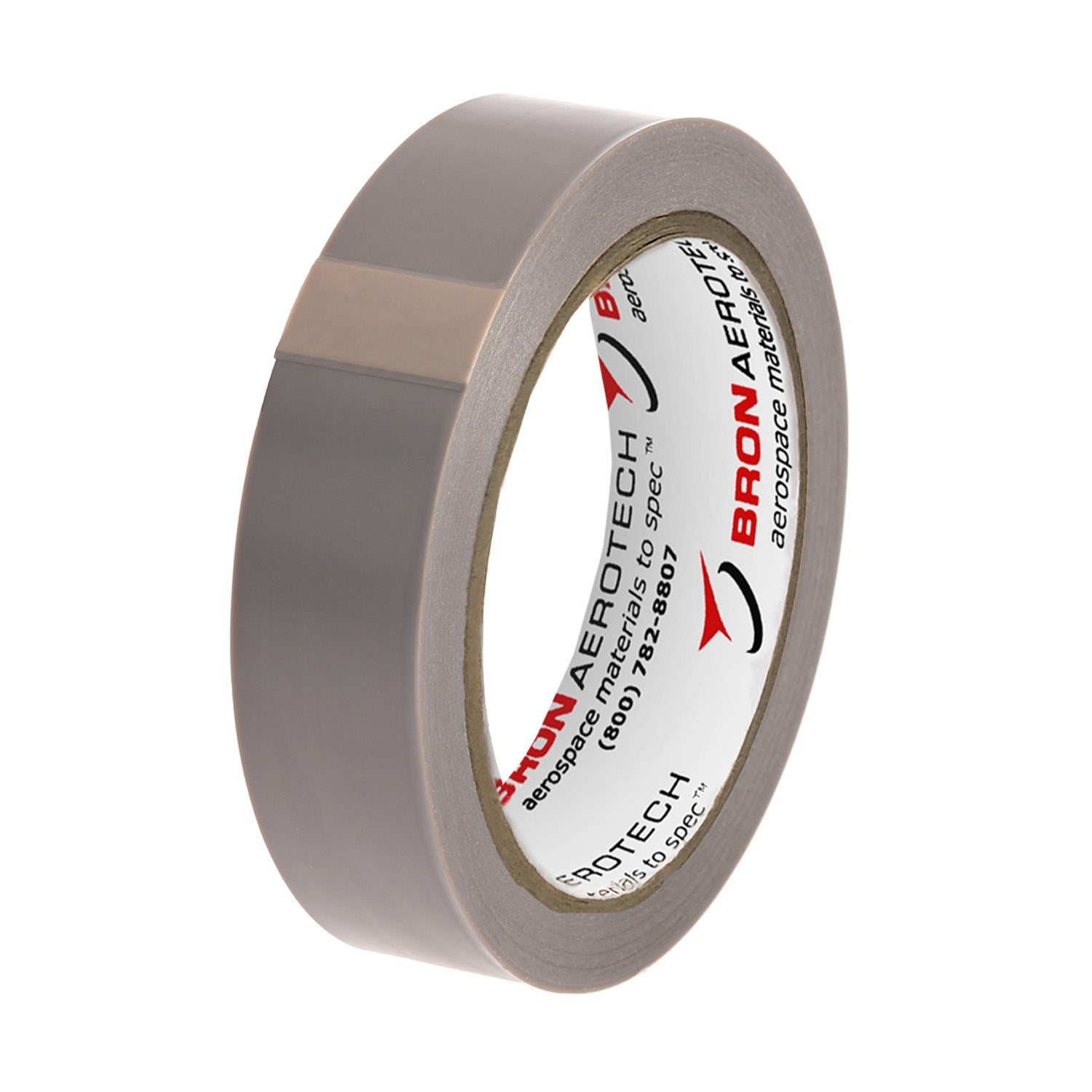

BA 5772 is a skived PTFE film tape that has been coated with a high-temperature silicone adhesive. One side has a coated adhesive while the other provides a low coefficient of friction PTFE film which has conformable and thin properties.

Applications:

  • Release surface for head sealing machines & packaging equipment
  • Roll coverings on angle bars, guide rails, plastic extruders and roll coverings
