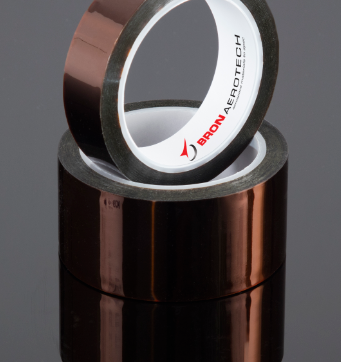

BA 7107-1 Polyimide Tape

Product details

Type Single-Sided Polyimid Tape
Application Groups
- Electrical Insulation & ESD Control
- Temporary Masking, Surface Protection, Holding
- Permanent Protection & Holding
Backing / Carrier Type
- Polyimide Film
Adhesive Type
- Silicone
Total Thickness 2.5 mil
Backing Thickness 1 mil
Adhesion to Steel 25 oz/in

Datasheet Request

Request a datasheet with additional technical information through the contact form below

Worldwide Shipping

Custom Converting Capabilities

Certs + Documentation Available

AS 9100 + ISO 9001:2015 Certified through NSF-ISR

BA 7107-1 is a 1-mil Polyimide Film with a silicone adhesive specially designed for high temperature masking applications.BA 7107-1 is mainly used for gold finger masking, coil insulation and high temperature harness wrapping. BA 7101-1 can also be removed cleanly after exposure to heat/chemicals, leaving no residue behind. In electrical insulation applications, this product does meet class H requirements.

Applications:

Abrasion Resisting
Coil Insulating
Electrical Insulating
Electronics Manufacturing
Gold Finger Masking
High Temperature Masking
