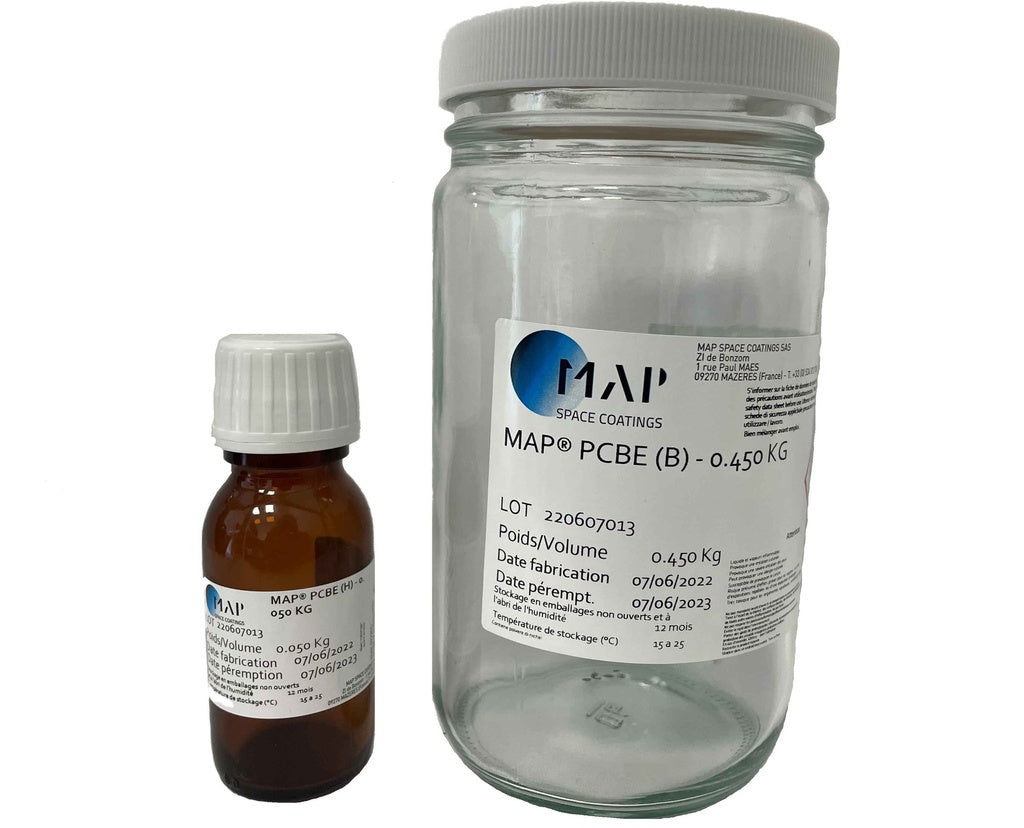

MAP® PCBE Coating
Product details
- Type Coating
Datasheet Request
Request a datasheet with additional technical information through the contact form below
Worldwide Shipping
Custom Converting Capabilities
Certs + Documentation Available
AS 9100 + ISO 9001:2015 Certified through NSF-ISR
Low outgassing conductive white silicone coating
MAP® PCBE is a conductive white silicone coating developed for use in spacecraft. This coating provides superior thermal protection with excellent thermo-optical properties and very high resistance to particles (electrons, protons) irradiations and UV irradiation. This coating also provides a very good thermal stability at very low temperature (-170°C) and an electrical surface potential nil under electron beam irradiation (MAP® PCBE is compliant with ESD test).
Applications:
MAP® PCBE is suitable for outside and inside flight hardware parts of satellites. This coating finds in particular an application on:
- Antennas, radiators, reflectors
- Back side of solar panels, Composite NIDA panels
- Brackets, etc.
